TRANSFORMER
KLEP7
Specification is based on the order.
- BOBBIN MATE : PHENOL
| Configuration | A | B | C |
|---|---|---|---|
| EP | 6.5 | 7.5 | 9.2 |
| EP10 | 7.85 | 10.4 | 11.5 |
| EP13 | 9.0 | 13.0 | 12.5 |
| EP17 | 11.25 | 17.0 | 18.0 |

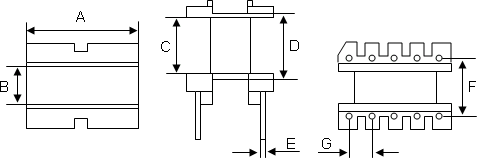

| Configuration | A | B | C | D | E | F | G | Comments |
|---|---|---|---|---|---|---|---|---|
| 1011 | 10.0 | 7.2 | 6.6 | 8.0 | 0.4 | 8.0 | 2.5 | 8P |
| 1312 | 13.7 | 6.3 | 10.0 | 8.2 | 0.6 | 10.3 | 3.5 | 6P |
| 1614 | 11.2 | 5.2 | 8.5 | 9.9 | 0.8 | 9.0 | 3.0 | 6P, 10P |
| 1617 | 16.0 | 7.0 | 9.0 | 10.5 | 0.6 | 11.0 | 3.2 | 10P |
| 1916 | 15.0 | 5.8 | 8.8 | 10.7 | 0.7 | 11.0 | 4.0 | 7P, 8P |
| 1927 | 20.0 | 5.2 | 20.0 | 22.0 | 0.8 | 14.5 | 4.0 | 8P |
| 2218 | 21.6 | 17.0 | 8.8 | 10.4 | 0.8 | 12.5 | 5.0 | 8P |
| 2219 | 21.8 | 16.0 | 8.4 | 10.2 | 0.8 | 10.0 | 4.0 | 10P |
| 2229 | 21.4 | 16.5 | 18.2 | 20.4 | 0.8 | 12.5 | 5.0 | 8P |
| 2519 | 24.3 | 7.2 | 10.3 | 12.0 | 0.8 | 12.5 | 5.0 | 8P |
| 2525 | 17.0 | 7.8 | 15.5 | 17.4 | 0.8 | 12.5 | 5.0 | 10P |
| 2820 | 22.0 | 11.6 | 10.5 | 12.2 | 0.8 | 17.5 | 5.0 | 10P |
| 3329 | 22.6 | 15.2 | 16.8 | 18.9 | 0.8 | 22.5 | 5.0 | 14P |
| 4035 | 29.2 | 12.2 | 17.4 | 19.5 | 1.0 | 25.0 | 5.0 | 12P |
-
